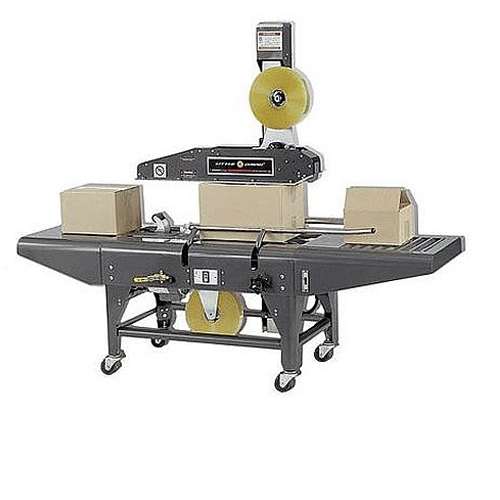

Loveshaw Random Legend Case Sealer

No adjusting needed for sealing random box sizes at speeds of 80 ft. per minute. The Random Legend has a single mast, enclosed head lifting cylinder, head raising air switch and comes standard with extended side rails, and a roller in-feed table with integrated roller switch to operate rails.

In order to help you purchase the very best product for your application, and obtain the lowest pricing and shipping rates to your location, we recommend that you call us at 888.998.8766 and speak with one of our equipment technicians.

It is important to us that you receive the best solution at the best price.

CALL US FOR BEST PRICING! WE WILL NOT BE BEAT!

Product Code: RANDOM_LEGEND

Additional Information

Specifications:

1 Year All Components*
2 Years Gear Reducer
3 Years Cartridge*
Converts from 2" to 3" wide tape
Plug in operation
Minimal operator training required
Sealed drive system
CaseLocker ST® tape cartridge requires no lubrication
Patented single mast design allows clear access
Knife guard system of the CaseLocker ST® tape cartridge only allows the blade to be exposed only when the rollers have been depressed

Specifications:

Power Requirements:

115 volts, single phase, 60 cycle
(other voltage available, consult Loveshaw)

Operating Speed:

Continuous belt drive; 80' per minute (24.4 m/min.)
(production rate depends on box size & operator dexterity)

Weight:

275 lbs. (125 kg) uncrated

Closure Material: (pressure sensitive tape)

Width: 1-1/2" (38mm) to 2" (51mm)
Roll size: up to 15" (381mm) diameter

Case Capacity: (with 2" wide CaseLocker ST® Cartridge)

Minimum:
Height: 4-1/2" (114mm)
Width: 4-1/2" (114mm)
Length: 6-1/2" (165mm)
*Conveyor height minimum is 22-1/4" (565mm)
Maximum:
Height: 24" (610mm()
Width: 22" (559mm)
Length: infinite
*Conveyor height minimum is 22-1/4" (565mm)
