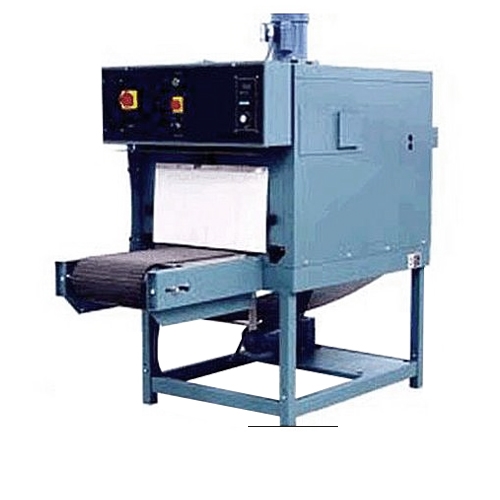

Shanklin Single Chamber T-7H Shrink Tunnel
Shanklin Single Chamber T-7H Shrink Tunnel

The T-7H features larger tunnel opening height to accommodate higher profile packages. Heavy-duty conveyor - Stainless steel mesh belt, variable speed DC drive.Fixed tunnel ceiling height; features expanded tunnel opening to accommodate medium to high profile packages, front-mounted control box standard.

In order to help you purchase the very best product for your application, and obtain the lowest pricing and shipping rates to your location, we recommend that you call us at 888.998.8766 and speak with one of our equipment technicians.

It is important to us that you receive the best solution at the best price.


Product Code: ST-7H


Additional Information VIDEO Demonstration

Features:
  • Virtually maintenance - free, thanks to straightforward, dependable design
  • Easy to use - Set temperature, conveyor speed, air velocity, and go!
  • Flexible - Adjustable top air jet velocity ensure superior shrinks of unusual products.
  • Heavy-duty conveyor - Stainless steel mesh belt, variable speed DC drive.
  • Fixed tunnel ceiling height; features expanded tunnel opening to accommodate medium to high profile packages, front-mounted control box standard.
Specifications:
  • Tunnel Passage: 12" high x 22" wide x 42" long
  • Overall Dimensions: Maximum 82" high x 34 1/2" wide x 74" long, Optional 24" discharge, giving overall length of 90"
  • Conveyor Height: 28" minimum, 40" maximum
  • Conveyor Speed: Variable from 15 to 120 ft./min.
  • Blower Motor: 3/4 hp, single phase capacitor start
  • Heaters: Six finstrip (encased element)
  • Power: 230 volts, 57 amps, 1 phase, 13.1 KVA max (6.6 KVA normal usage), 230 volts, 36 amps, 3 phase, 8.2 KVA max (4.1 KVA normal usage)
  • Temperature Controller: Calibrated 50 to 500 degrees F
  • Controls: Main power fused disconnect, Adjustable top air flow, Conveyor variable speed, Volume control for bottom air, Cascade plates for side air, Tunnel control switch, Main air velocity, Conveyor switch
  • Safety Features: Motor overload protection, Emergency stops switches, High temperature limit switch
  • Accessories: Poly kit for use with LDPE, Composite link conveyor belt, Package guides, Live/dead roller conveyor, Casters, End viewing windows
